The ‘Hunt’ for a lightweight, wide, highly durable year-round aero road rim.

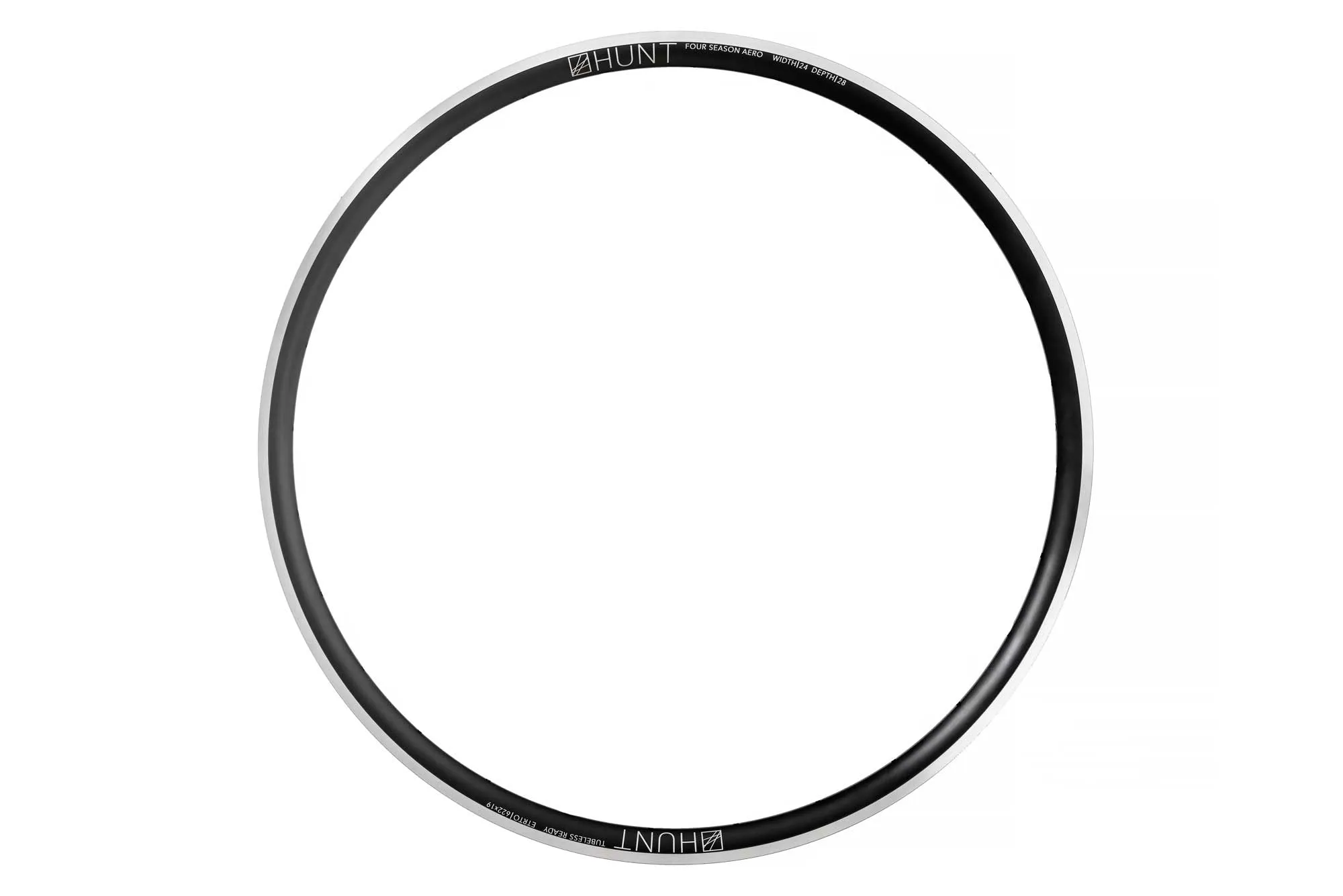

Name: HUNT 4 Season Aero V2 Rim | Rear
SKU: 323728

28 DEEP | 24 WIDE Ext | 19 Wide Int | 485G

High-performance technology that will deliver you to the finish every time, especially those all-important rain-soaked signpost finishes with your mates on a long training ride. A strong and lightweight 6061-T6 heat-treated sleeved rim features a semi-aero rounded profile 28mm deep and wide at 24mm (19mm internal) for a great tyre profile with wider 25-45mm tyres, giving excellent grip and lower rolling resistance.

At HUNT, we enjoy the puncture resistance and grip benefits of tubeless on our every-day rides so we wanted to allow our customers the same option, but of course, all our tubeless-ready rims are also designed to work perfectly with clincher tyres and inner tubes.

H-Lock tubeless-ready rim bed profile. H-Lock is our tubeless-ready rim bed profile with up-kicks to the shoulders of the tubeless steps which help to create a great rim-well seal for first installation and easy sealing of tubeless tyres. The H-Lock profile also locks the beads in place more securely once seated. This is especially important when running lower pressures or riding off-road.

Detailed Specifications

Rim

Tubeless-ready – designed to work excellently with normal clincher tyres and tubes or tubeless tyres.
H-lock bead-seat up-kicks for easy and secure tubeless installation
6061-T6 heat-treated aluminium alloy.
24mm outer and 19mm inner width ideal for 23-45mm tyre widths
28mm deep rounded aero section
Precision machined rim brake track
Matt black anodized finish with laser-etched graphics for low weight with excellent durability.
Maximum tyre pressure for this rim is 100psi when running the wheel set-up tubeless. 100 psi is more than enough for any rider on road. Maximum tyre pressures for other tyre sizes: 30mm - 32mm do not exceed 70psi, 33mm do not exceed 50psi, 35-45mm do not exceed 45psi, 45-50mm do not exceed 40psi. The maximum pressure of your tyre may be lower than the maximum pressure for the rim - never exceed the maximum pressure written on the side of your tyre.
ERD 589mm
